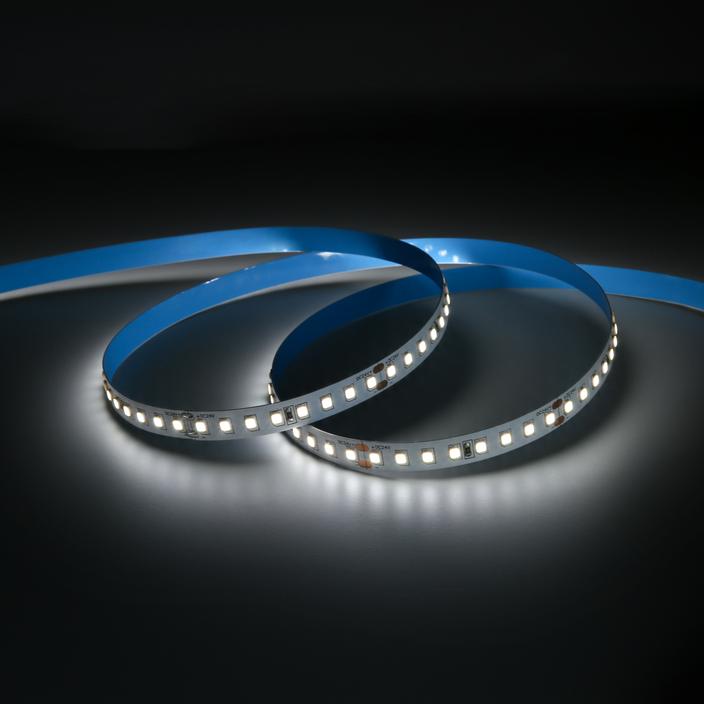

YUJILEDS® High CRI 95+ High Efficacy 2835M LED Flexible Strip

YUJILEDS® High CRI 95+ High Efficacy 2835M LED Flexible Strip

YUJILEDS® high efficacy 2835M flexible strip with upgraded design mounted with the 3rd generation of 2835M LEDs. Compared to the standard 2835 LEDs, YUJILEDS® 2835M LED provides typical 21% improvement on luminous efficacy but the spectrum remains the same, which means the color rendition is of the same high quality as the previous one.

Besides the improvement in LED package, a new flexible strip with upgraded design and mounted with 2835M is released as well. Specific considerations for optimizing the efficacy, consistency and reliability are implemented on the design.

Compared to the standard PCB circuit, the new flexible strip applies 3oz copper as the electrical circuit which improves thermal dissipation and reduces voltage drop when chaining more strips.

The matching of resistors is based on calculation of the voltage of the LEDs. On the new flexible strip, every LED will be calibrated on the brightness when working with high accuracy resistors to achieve highly consistent illumination not only within the same strip, but also among different strips.

The design of the series-parallel connection is based on precise control and calculation of the 2835M LEDs. 128 LEDs per meter (39 LEDs per foot), typical 16 W/m and 24 V DC, all parameters are for maximizing luminous efficacy.

Typical Flexible Strip

Yuji Flexible Strip

CRI 75-90

CRI 95+ or CRI 98

Standard, lowest-cost LEDs

High-quality YUJI LED SMDs

Standard, lowest-cost components

Precision SMT resistors and enhanced copper traces

No-name adhesive

3M® Adhesive backing

Basic materials and construction

High-quality materials/ high efficacy LEDs, optional IP65 and IP67 versions

For more information see the product page or send us an email at webstore@yujigroup.com.
