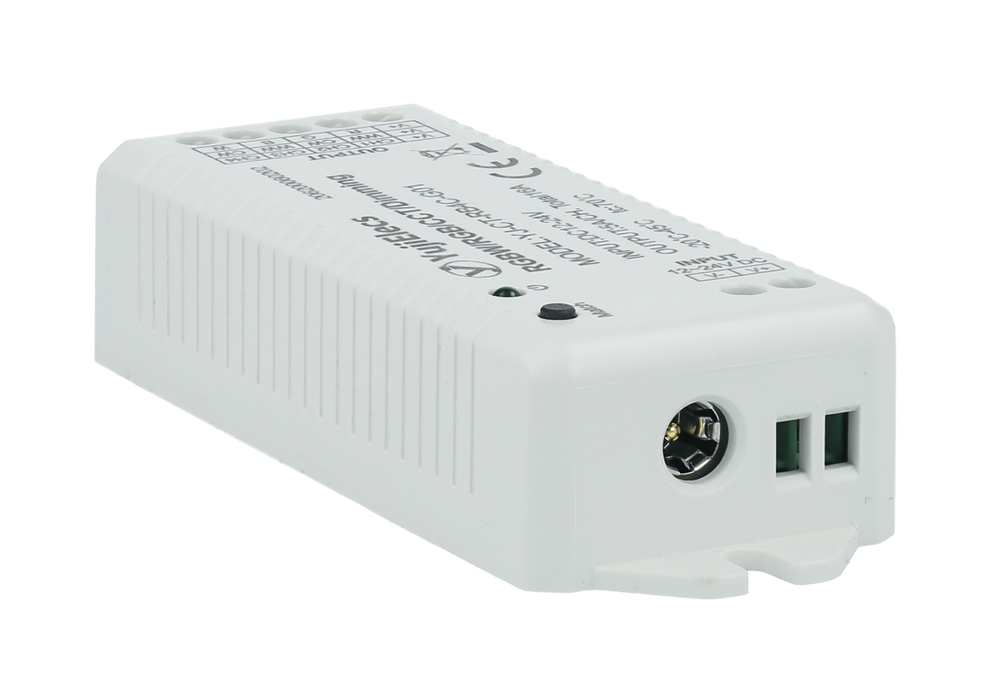

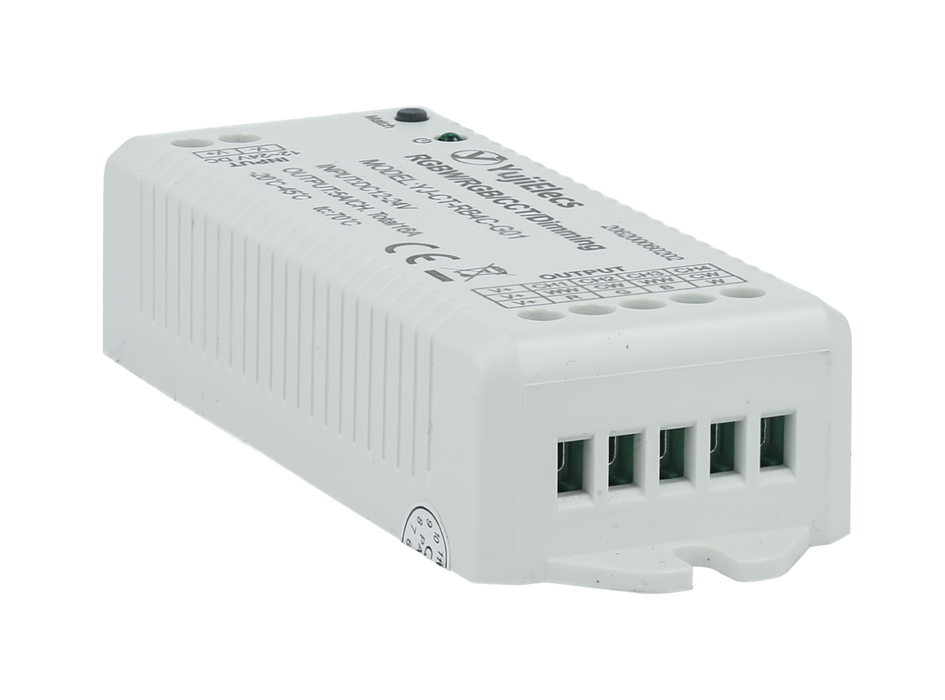

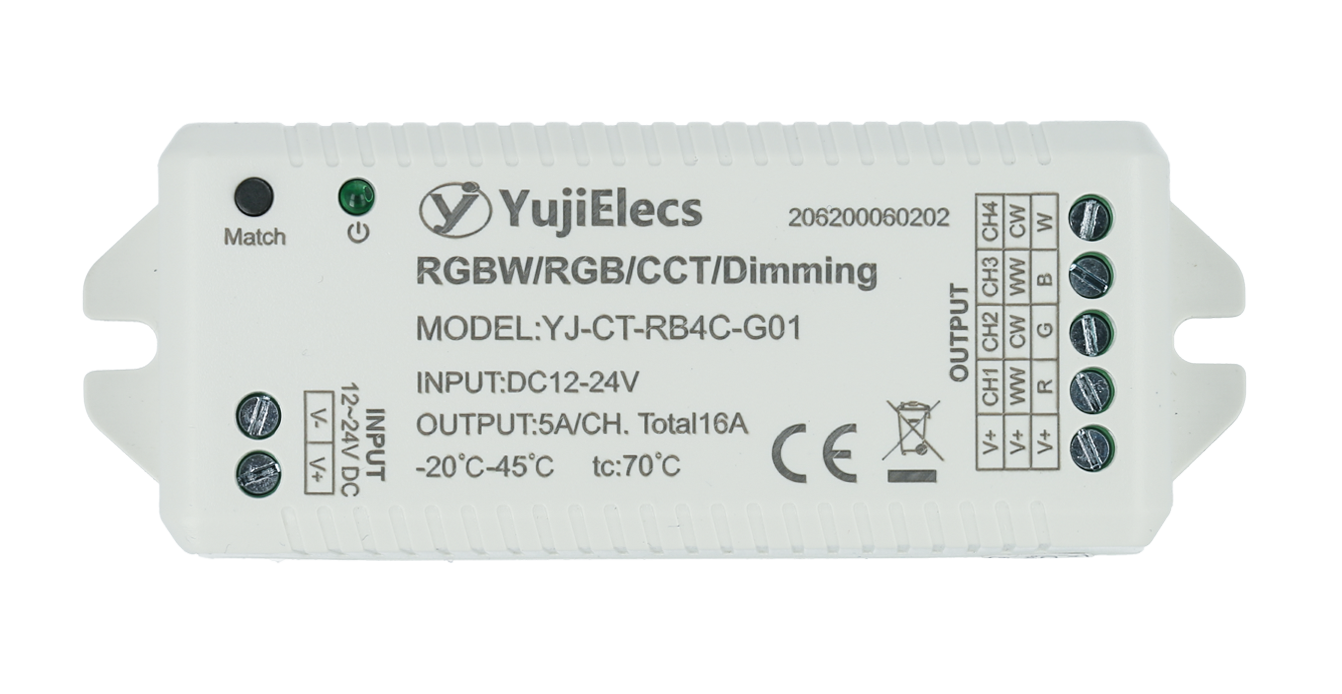

YujiElecs™ Remote Control Dimmer Kit for RGB/RGBW LED Strips - Pack: 1pcs

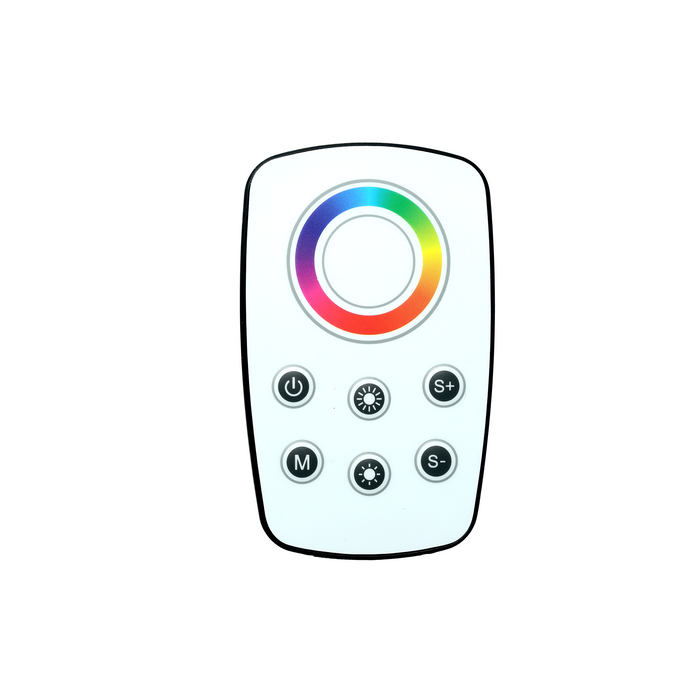

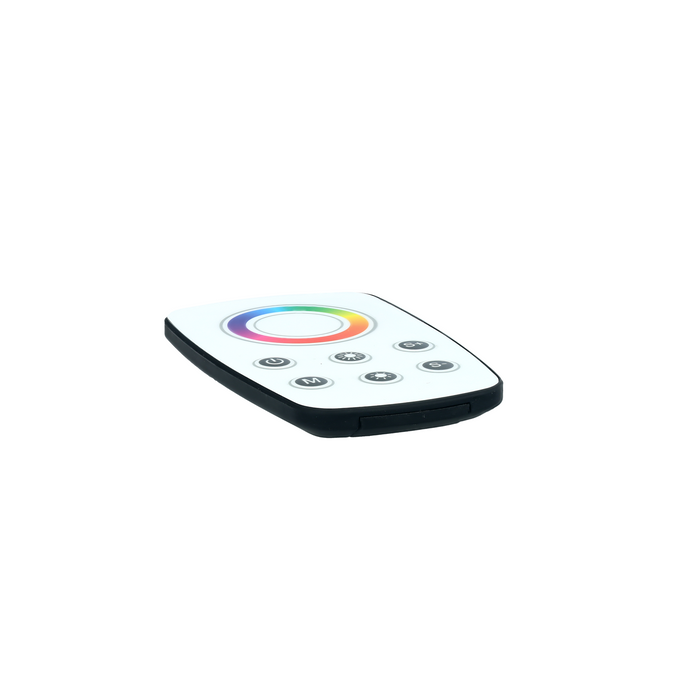

- Includes 1* 4-channel receiver and 1* 2-channel remote control.
- Remote control allows for real time adjustment of RGB/RGBW brightness, color selections, and color modes, cycle speed, fade or step through colors, etc.
- Touch-sensitive control wheel allows you to instantly set your lights to any desired mode.
- Remote control works within distance of 20m.
- Power off memory function.
- Max. 5A amps per channel at 12 or 24 VDC with a total maximum of 16A.
- One CR2032 (3V DC) battery is needed for the remote control.
- Protections: short-circuit, over current, over temp.
- Provides dimming control for YUJILEDS® RGB/RGBW bi-color high CRI LED Strips .
- Compatible with YujiElecs IP67 Waterproof Power Supply for LED Strips, 120W .
- Warranty: 2 years.
Remote Control: 100mm*61.5mm*9mm
Remote Control: 35g
|Dimmer Input Voltage||DC 12V - 24V|
|Dimmer Output Voltage||DC 12V - 24V
|Output Current||5A/CH. Total max 16A|
|Protection||Short circuit, over current & over temperature|
|Wireless Frequecy||2.4GHz ISM|
|Compatible Power Supply||YujiElecs IP67 Waterproof Power Supply for LED Strips, 120W|
Spec Sheet & User Manual
This easy-to-use YujiElecs Remote Control Dimmer Kit is designed for 3 - 4 channel LED strips. It can be easily matched with YUJILEDS RGB LED strips and RGBW LED strips.
It is a simple and easy way to customize and control 5-wire 4-channel (RGBW) 12 or 24 volt DC LED strips. It allows you to create and store the perfect ambiance for any occasion, by choosing whether to fade, step, or strobe through the color cycle, and adjusting the speed and brightness. Custom colors can also be displayed in real time by simply touching the color wheel. Simplify your RGBW LED installation and eliminate wires by pairing with one RGB/RGBW remote.
