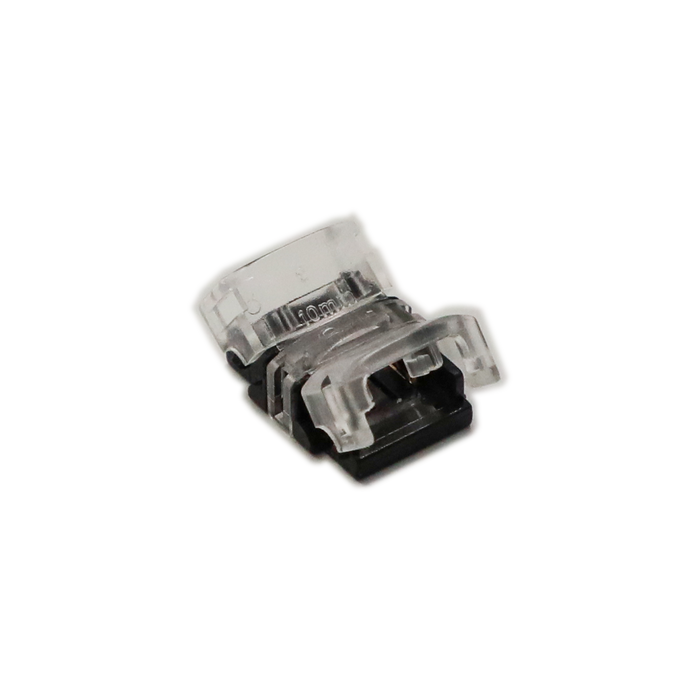

YujiLights™ 2 Pin Piercing Grip Strip Connector for Single Color LED Strips – Pack: 5pcs/10pcs

FEATURES

• Compatible with most YUJILEDS® single color LED strips
• Comes in packs of 5/10 connectors
• Lightweight and durable materials
• Strong connections by piercing through solder pads
• Easy and fast connection to power and extended strips
• Compatible with 10mm wide strips

SPECIFICATIONS

Type	Strip to strip	Strip to wire
Dimensions (mm)	19.6*14.6*7.7	24.3*14.6*7.7
Wire Gauge Range	22AWG - 20AWG  (0.32mm2 - 0.52mm2)
Pin Quantity	2
Max. Voltage	DC 36V
Max. Current	5A
Working Temperature	-10°C - 45°C
LED Strip Width	10mm

Compatible LED Strips

YUJILEDS® 2110 LED Strip 420 LEDs/meter

YUJILEDS® 2110 LED Strip 700 LEDs/meter

YUJILEDS® CRI 95+ LED 2835 Strip

YUJILEDS® CRI 98 LED 2835 Strip

YUJILEDS® Standard Illuminant D50 LED Strip (ISO3664:2000)

YUJILEDS® High CRI 95+& High Efficacy 2835M LED Flexible Strip

YUJILEDS® Single Color Red LED Flexible Strip

YUJILEDS® Single Color Green LED Flexible Strip

YUJILEDS® Single Color Blue LED Flexible Strip

YUJILEDS® Single Color Violet LED Flexible Strip

DESCRIPTION

This newly released YujiLights™ piercing grip strip connector can help make the installation simpler and faster than ever. The lightweight but durable connectors pierce through the solder pads and the wire jacket, making the connections mechanically and electrically secure and strong. No soldering or wire stripping needed.

INSTALLATION INSTRUCTIONS

Connection Instructions
