YUJILEDS® CRI 95+ High Power 100W Flip Chip COB LED 3200K 5600K - 160H

SKU YJ-BC-160H-G01-32
Sold out
Original price $99.00 - Original price $99.00
Original price $99.00
$99.00
$99.00 - $99.00
Current price $99.00
FEATURES
  • CRI 95+ light quality
  • 100W nominal power consumption
  • 16mm×16mm× 0.38mm chip-on-board LED
  • φ9mm super compact light-emitting surface
  • Up to 6000lm lumen output
  • High lumen density utilizing flip-chip technology
  • The 160H COB has been upgraded, where is replaced with the BC 125H COB.
  • OVERVIEW
  • SPECIFICATIONS
  • ACCESSORIES
  • INSTALLATION
  • APPLICATIONS

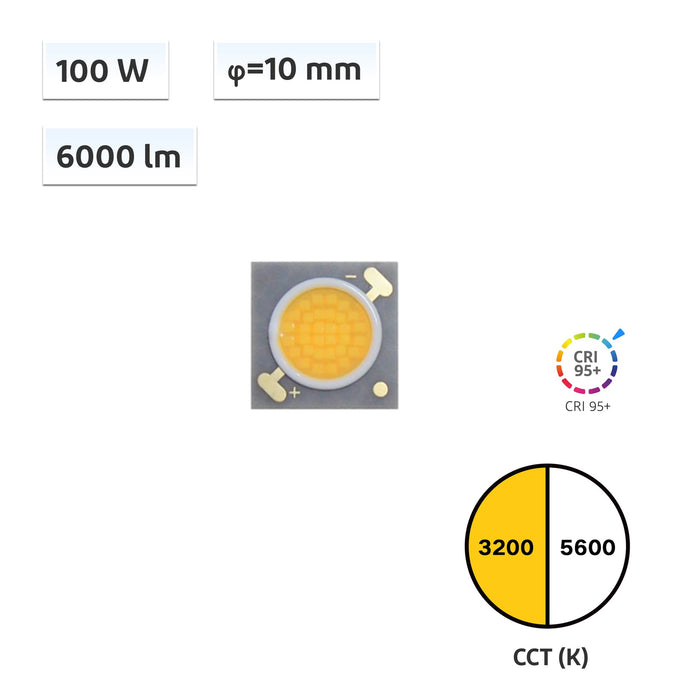

  • YUJILEDS® compact-LES (light-emitting surface) 160H COB offers a 100W power drive and remarkably reduced the dimensions. The diameter of its LES has scaled down to 9mm from the 40mm typically specified in conventional 100W COB packages. Moreover, it provides exceptionally high light intensity and even higher center beam candle power (CBCP). These offer compact and bright lighting solutions for spotlights as well as high bay lights. Providing 95+ high CRI, this high-power LED COB can be used in a variety of applications demanding high color quality and high density light output.

  • Power 100W
    Dimensions 16mm×16mm×0.38mm
    CCT 3200K 5600K
    Luminous Flux 5600lm  6000lm
    CRI (Ra) 95+
    SDCM ≤3 steps
    Viewing Angle 120°
    Forward Current 4A
    Forward Voltage 23V - 27V
    Packaging 1pc
    Warranty 3 years
  • Power Supply

    Constant current DC power supply capable of providing up to 4000 mA in the 15 - 30 V range.

    Heat Sink

    Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?

    Thermal Grease

    This COB has super high-power density and requires sufficient thermal management. We suggest using thermal grease with high thermal conductivity.

    We recommend ShinEtsu-X23-7762.

  • NOTICE: LEDs are current-sensitive devices and overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.

  •  -Spot lights

    -Track lights

    -Machinery lighting

    -Scanner lighting
