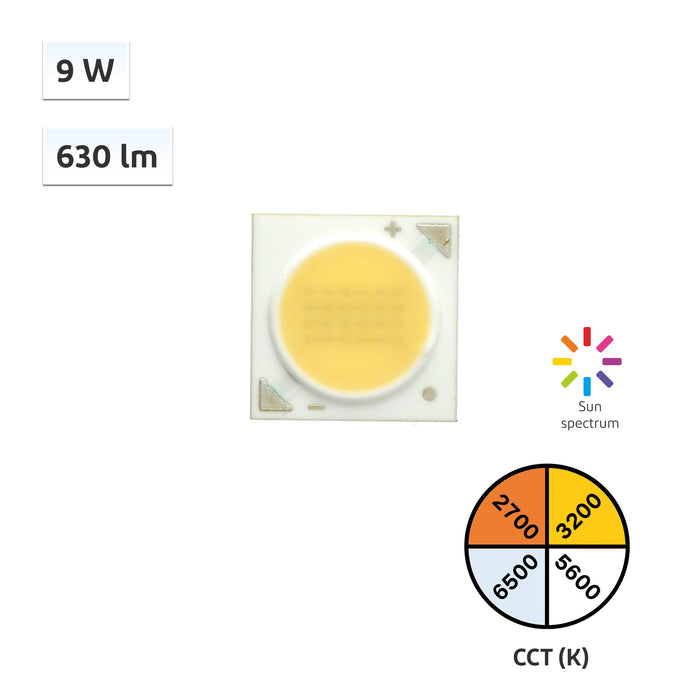

YUJILEDS® CRI 98 9W COB LED - 135L - 5pcs

FEATURES

• CRI >95 up to 98 light quality
• 9W nominal power consumption
• 13.5 mm × 13.5 mm x 1.0 mm chip-on-board LED
• 120° emission angle
• RoHS compliant

• OVERVIEW

• SPECIFICATIONS

• ACCESSORIES

• INSTALLATION

• APPLICATIONS

• YUJILEDS® 135L series high CRI COB provides high CRI and high luminous flux in a compact 13.5 mm square footprint solution. Providing 95 CRI (minimum) up to 98, this mid-power LED can be used in a variety of applications demanding high color quality and light output.

• Power	9W
  Dimensions	13.5mm*13.5mm*1.0mm
  CCT	3200K	5600K
  Luminous Flux	497lm-536lm	585lm - 630lm
  CRI (Ra)	>95 up to 98
  SDCM	≤ 3 steps
  Viewing Angle	120°
  Forward Current	450mA
  Forward Voltage	18V - 21V
  Packaging	5pcs
  Warranty	3 years

  Spec Sheet
  Photometric Report

• Power Supply	Constant current DC power supply capable of providing up to 700 mA in the 18 - 21 V range.
  Heat Sink	Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?

• NOTICE: LEDs are current-sensitive devices and overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.

• -Spotlights

  -Tracking lights

  -Machinery lighting

  -Scanner lighting

  -Down lighting

  -Recessed lighting
