YUJILEDS® AP Series CRI 98 0.2W LED SMD - 3030

YUJILEDS® AP Series CRI 98 0.2W LED SMD - 3030 - 3000pcs/Reel

SKU YJ-AP-3030-G02-27
$1,200.00 - $1,200.00
$1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
FEATURES
  • AP Series CIE standard illuminant light source
  • 0.2W power consumption, up to 26lm output
  • 3.0mm×3.0mm universal package
  • Follows standards of CIE illuminants of A, D50 and D65
  • Optimized efficacy for full spectrum

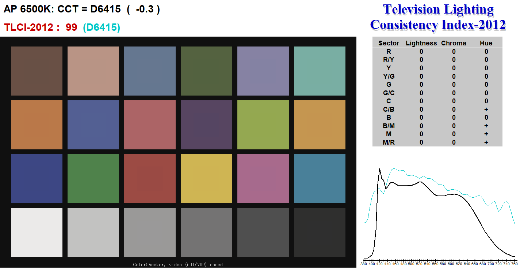

  • TM-30 & TLCI specified
  • SimpleBinning solution provides the most economical, simple, and practical solution
  • OVERVIEW
  • SPECIFICATIONS
  • APPLICATIONS

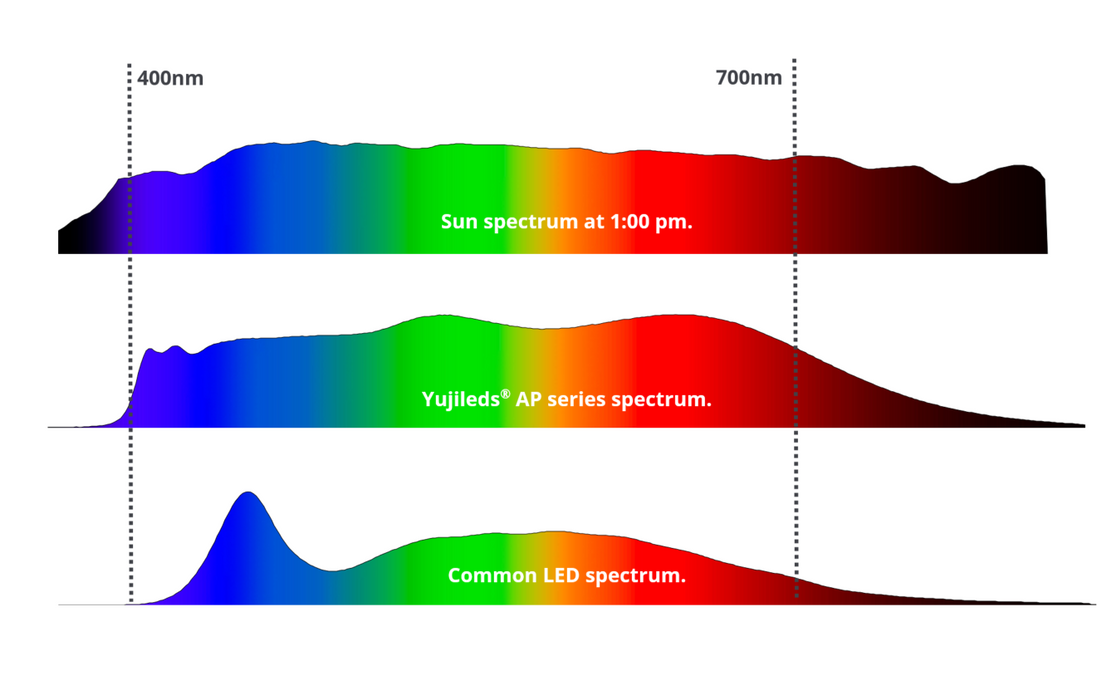

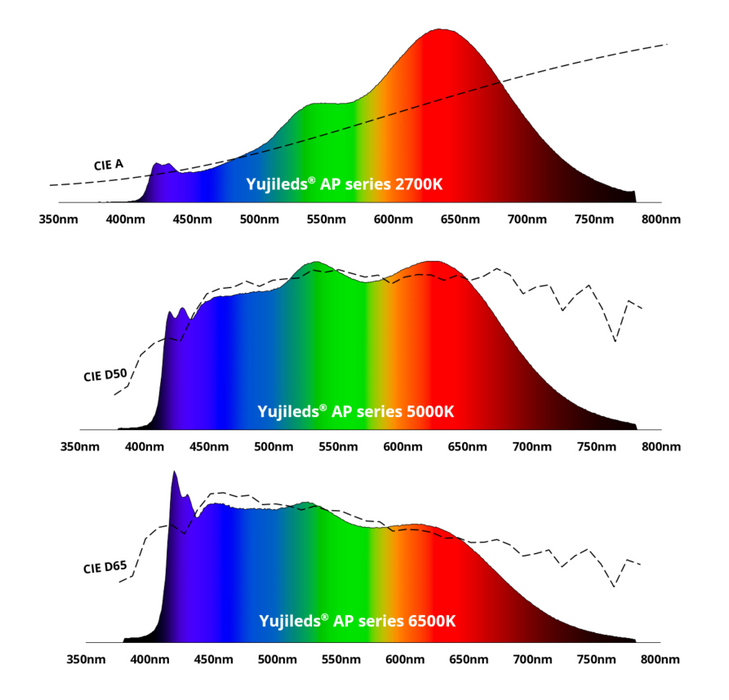

  • Yujileds® AP series 3030 LED is based on our innovative and revolutionary technologies. It provides an unprecedented spectrum with ultra-homogeneous features within one compact package, where the color rendition performs superbly and stably. The AP series LED comes with three standard spectra of 2700K, 5000K and 6500K corresponding to the CIE illuminants of A, D50 and D65 respectively. Compared to these standards, the AP spectra achieve 98% similarity within one compact package, unprecedented among all the similar products on the market.

  • Part Number P3200007.00
    Power 0.2W
    Dimensions 3.0mm*3.0mm
    CCT & Luminous Flux 2700K 23lm
    5000K 26lm
    6500K 26lm
    CRI (Ra) 95+

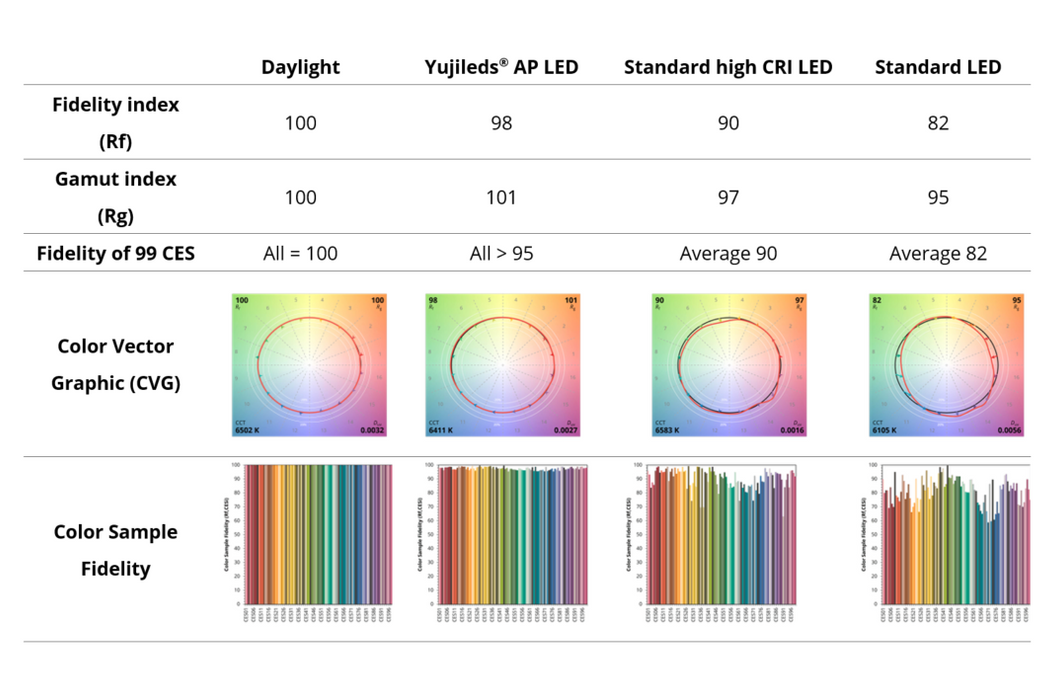

    Fidelity Index (Rf) 98
    Gamut Index (Rg) 101
    TLCI 2012 98
    SDCM ≤3 steps
    Viewing Angle 120°
    Forward Voltage 2.8V - 3.2V
    Forward Current 65mA

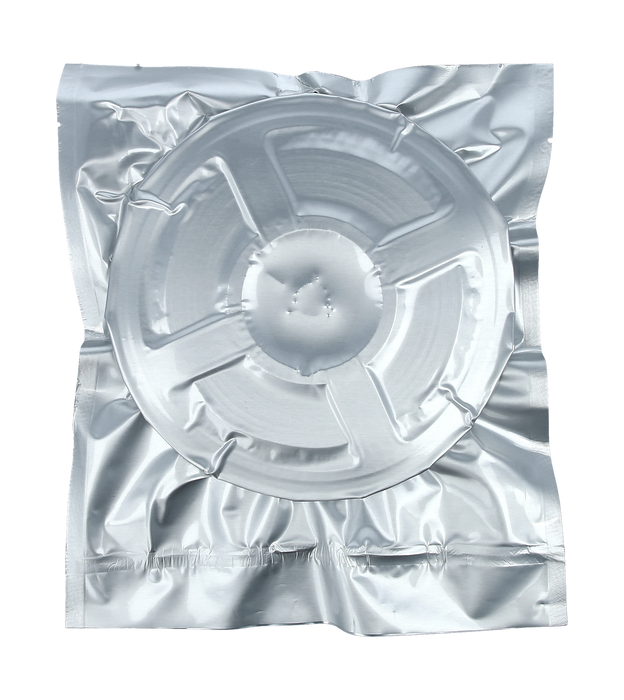

    Packaging 3000pcs/reel
    Warranty 3 years
    • High-end architectural lighting
    • Photographic/broadcast lighting
    • Horticulture lighting
    • Human-centric lighting
    • Photoelectric device and relevant research
