YUJILEDS® CRI 98 0.2W LED SMD - 2835X G02 - 4000pcs/Reel

Save 15% Save 15%
Original price $680.00
Original price $680.00 - Original price $680.00
Original price $680.00
Current price $578.00
$578.00 - $578.00
Current price $578.00
SKU YJ-VTC-2835X-G02-27
FEATURES
  • Full spectrum high CRI 98 performance
  • 0.2W nominal power, up to 18lm output
  • 2.8 mm×3.5mm universal package
  • TLCI & TM-30 specified
  • Exempt Risk Group certified (IEC 62471)
  • SimpleBinning solution
  • OVERVIEW
  • SPECIFICATIONS
  • APPLICATIONS
  • YUJILEDS®VTC 2835X G02 SMD is developed to replace the previous VTC2835 G01 SMD. Major change has been made in the color coordinates binning system, where the original 4-BIN system is replaced with a 2-BIN system. The wattage and luminous output are also improved. A higher power version (0.4W) VTC 2835MX G02 LED is also released.

    YUJILEDS® VTC technology succeeds in broadening the spectrum coverage to 400nm-730nm, and eliminates the sharp blue peaks to achieve homogeneous spectral power distribution, making the spectrum 95% similar to the sunlight within the visible spectrum.  Providing 98 CRI (typical), it can be used in a variety of applications demanding high color quality and performance.

  • Part Number P3190001.00
    Power 0.2W
    Dimensions 2.8mm*3.5mm
    CCT & Luminous Flux 2700K 14lm
    3200K 16lm
    5000K 18lm
    5600K 18lm
    6500K 18lm
    CRI (Ra) 98 (typical)
    Rf 97
    Rg 100
    TLCI 2012 99
    Viewing Angle 120°
    Forward Voltage 3.0V – 3.4V
    Forward Current 60mA

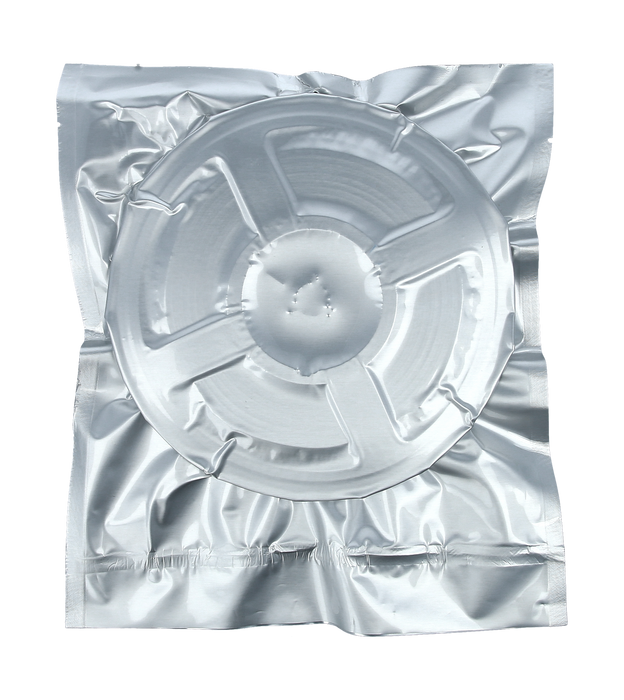

    Packaging 4000pcs/reel
    Warranty 3 years
    • High-end architectural lighting
    • Horticulture lighting
    • Photographic/broadcast lighting
    • Human-centric lighting
    • Photoelectric devices and relevant research
