- High CRI 98 light quality
- Full spectrum
- 0.4W nominal power, 32lm output
- 5.7mm×3.0mm universal package
- TLCI & TM-30 specified

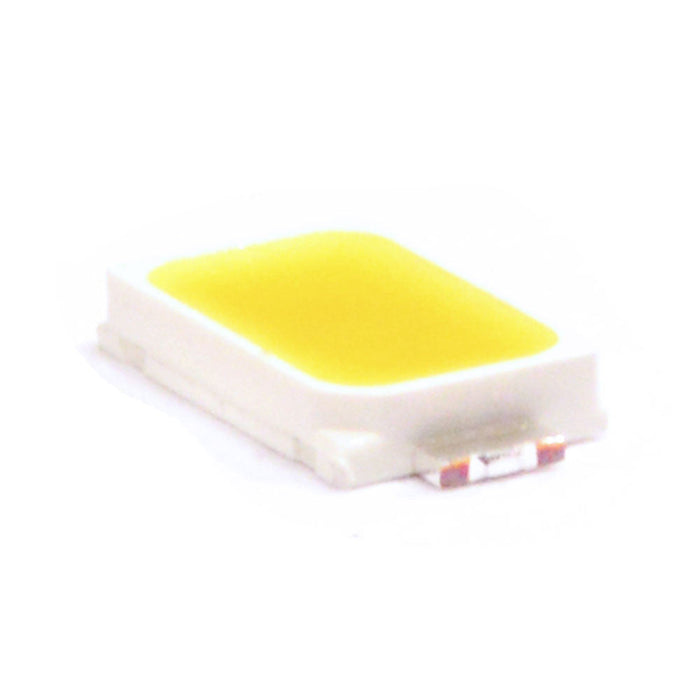

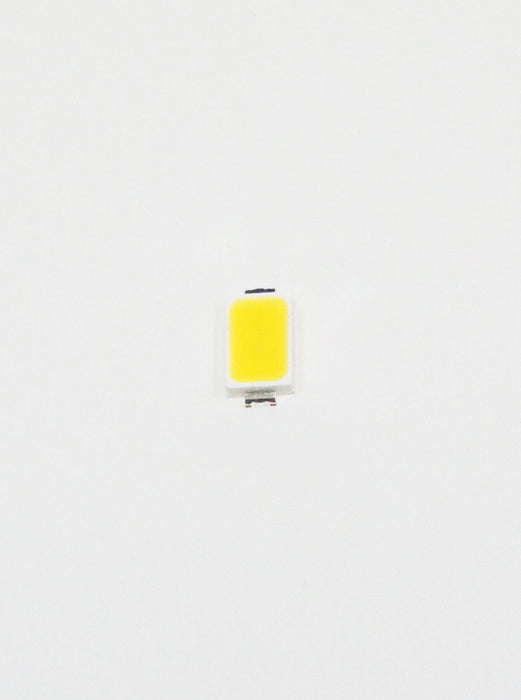

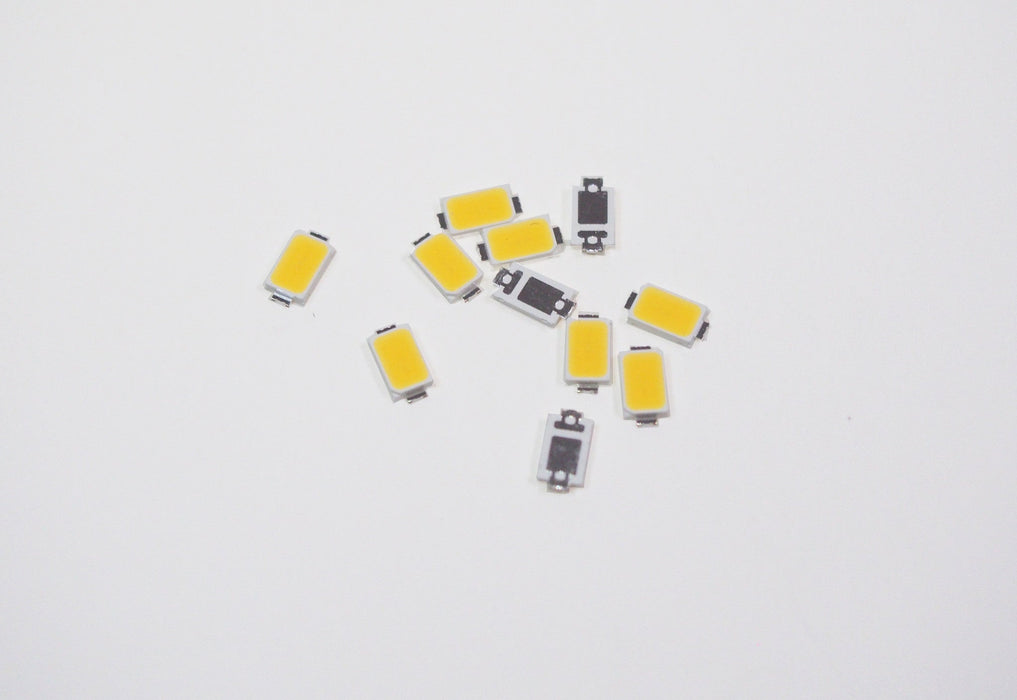

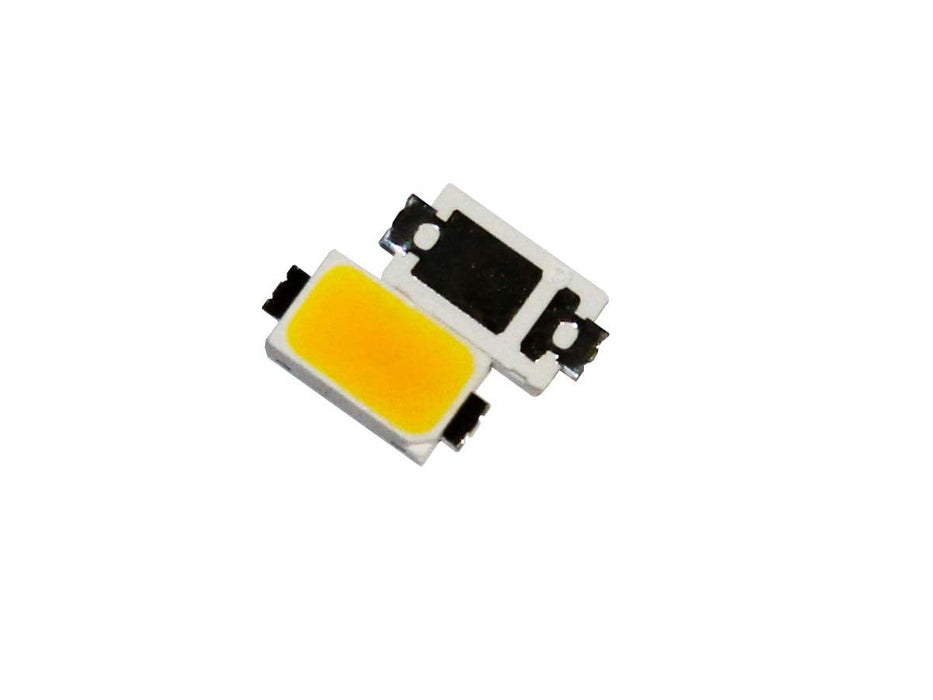

YUJILEDS® VTC 5730 white LED SMD provides a full-spectrum high CRI solution. Providing 98 Ra (typical) at 70 lm/W, this mid-power LED is well suited for applications requiring the highest level of light quality.
NOTICE: YUJILEDS® is gradually phasing out this VTC 5730 G01 LED and phasing into VTC 2835MX G02. Despite the change to a smaller footprint, the color coordinates binning system has been upgraded, where the original 4-BIN system is replaced with a 2-BIN system.

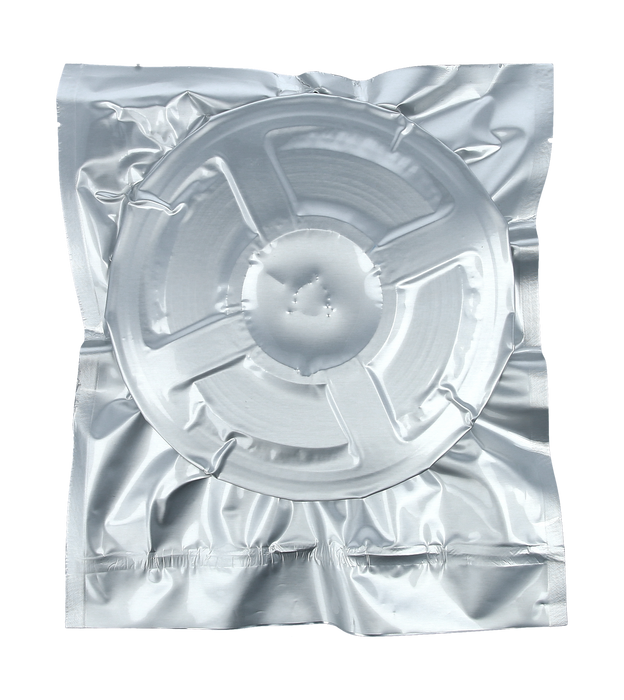

Power 0.4W Dimensions 5.7mm*3.0mm CCT & Luminous Flux 2700K 27lm 3200K 29lm 4000K 30lm 5000K 32lm 5600K 32lm 6500K 32lm CRI (Ra) 98 (typical) R9 90 (typical) Viewing Angle 120° Forward Voltage 3.1V – 3.7V Forward Current 120mA Packaging 3000pcs/reel Warranty 3 years
- High-end architectural lighting
- Horticulture lighting
- Photographic/broadcast lighting
- Human-centric lighting
- Photoelectric devices and relevant research
