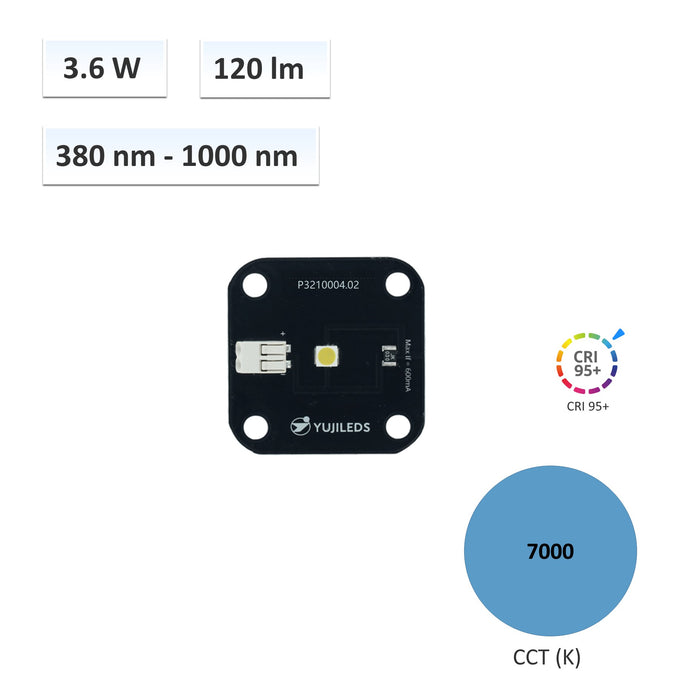

YUJILEDS® CRI 95 Full Spectrum (380nm-1000nm) 3.6W LED SMD with Base PCB

FEATURES

• Full-spectrum coverage between 380nm-1000nm
• Homogeneous spectral power distribution
• 1* 3.6W 5.0mm×5.0mm SMD on 50mm×50mm PCB
• Enhanced optical radiation density
• CE & RoHS compliant

• OVERVIEW

• SPECIFICATIONS

• APPLICATIONS

• YUJILEDS^® ultra full-spectrum LED adopts a 2-die-6-phosphor recipe including near-infrared phosphors to achieve a wide spectral coverage from 380nm to 1000nm. One of the main technical breakthroughs of this spectrum is the near-infrared phosphors. There is no gap between 660nm and 1000nm and the infrared part is as strong as the visual wavelength. The spectrum at different wavelengths is distributed evenly with typical 20% relative intensities.

  Keeping in such a compact package (5.0mm*5.0mm) while containing such homogenous spectral power distribution, this LED provides unprecedented flexibility for product design especially in space-limited conditions. It is not only for high CRI applications or horticulture lighting, but also a meaningful reference for solar spectrum simulation, such as scientific research and industrial inspection.

  Caution: This full-spectrum LED is designed and considered for non-visual and non-human-centric purposes, and the potential biological risk due to the spectral content of UV is reminded and emphasized here. Users should well understand the risk and take appropriate protections when applying this LED.

• Part Number	P3210004.02
  Power	3.6W
  Dimensions (SMD)	5.0mm*5.0mm
  Dimensions with PCB	50mm*50mm
  CCT	7000K
  Luminous Flux	120lm
  CRI (Ra)	95 (typical)
  Beam Angle	120°
  Forward Voltage	9V
  Forward Current	400mA
  Packaging	1 PCB/pack
  Warranty	3 years

  Spec Sheet
• • Hyperspectral device
  • Reference / Background light source
  • Spectral tuning and calibration
  • Visible and infrared optical analyzer
