The APS series LED is designed for creating a new era of natural lighting spectrum LED with superb color rendering performance. Compared to other sun spectrum LED solutions, the APS series LED utilizes the die and phosphor technologies effectively that achieves full-spectrum coverage in visual wavelengths, which improves the luminous efficacy (lm/W) and maintenance to a great extent.

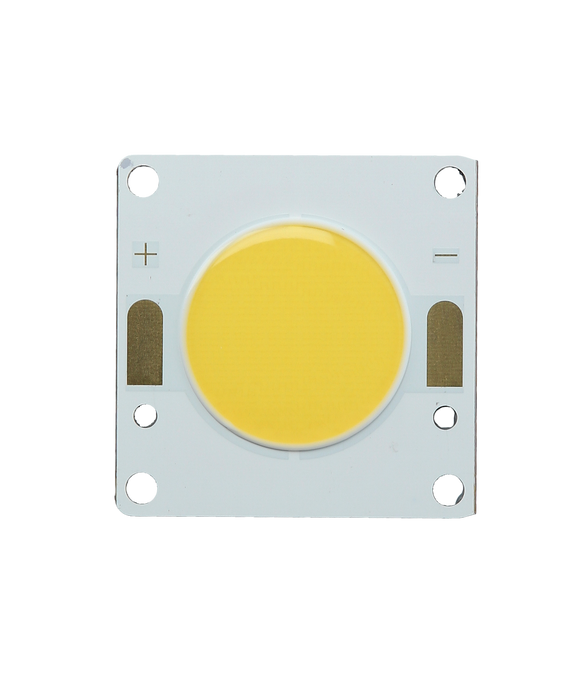

YUJILEDS® APS 230H series high CRI COB provides high CRI and high luminous flux solution. Providing 97+ CRI at up to 11900lm, this high-power LED can be used in a variety of applications demanding high color quality and light output.
-
| Power |
Rated 120W; Max 200W |
| Dimensions |
34mm*34mm*2.3mm |
CCT
|
5600K |
| Luminous Flux |
11900lm |
| CRI (Ra) |
97+ |
| SDCM |
2 steps |
| Viewing Angle |
120° |
| Forward Current |
2400mA |
| Forward Voltage |
51V - 57V |
| Packaging |
2pcs |
| Warranty |
3 years |
-
|
Power Supply
|
Constant current DC power supply capable of providing up to 3600mA at 51V - 57V.
We recommend Meanwell ELGC-300-H.
|
|
Heat Sink
|
Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?
|
-
NOTICE: LEDs are current-sensitive devices. Overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.
-
-High-end architectural lighting
-Photographic/broadcast lighting
-Healthy lighting
-Scanner lighting
-Photoelectric device and relevant research
We know you'll love YUJILEDS products as much as we do. But if for any reason, you're not completely satisfied with our product or service, just return your order within 30 days and we'll issue a full refund. See detailed instructions.
Spec Sheet
