YUJILEDS® CRI 95+ 10W COB LED 3200K 5600K - 135L G03 - 10pcs

FEATURES

• CRI 95+ light quality
• 10W nominal power consumption

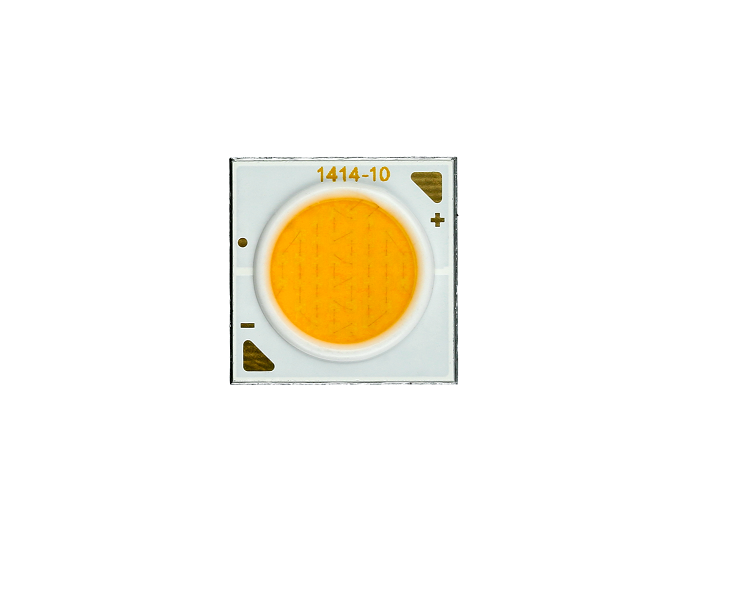

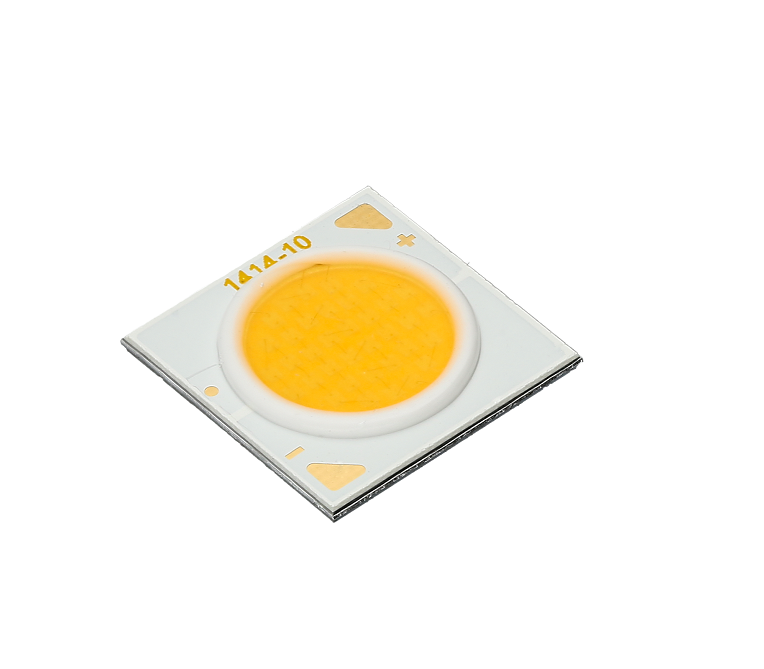

• 13.5mm×13.5mmx1.0mm chip-on-board LED
• 120° emission angle
• RoHS compliant

• OVERVIEW

• SPECIFICATIONS

• ACCESSORIES

• INSTALLATION

• APPLICATIONS

• YUJILEDS® 135L G03 series high CRI COB provides high CRI and high luminous flux in a compact 13.5 mm square footprint solution. Providing 95 CRI (minimum) up to 97, this mid-power LED can be used in a variety of applications demanding high color quality and light output.

• Power	10W
  Dimensions	13.5mm*13.5mm*1.0mm
  CCT	5600K
  Luminous Flux	1100lm
  CRI (Ra)	95+
  SDCM	≤3 steps
  Viewing Angle	120°
  Forward Current	300mA
  Forward Voltage	32V - 39V
  Packaging	10pcs
  Warranty	3 years

  Spec Sheet
  Photometric Report

• Power Supply	Constant current DC power supply capable of providing up to 400 mA in the 36V.
  Heat Sink	Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?

• NOTICE: LEDs are current-sensitive devices and overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.

• -Spot lights

  -Tracking lights

  -Machinery lighting

  -Scanner lighting
