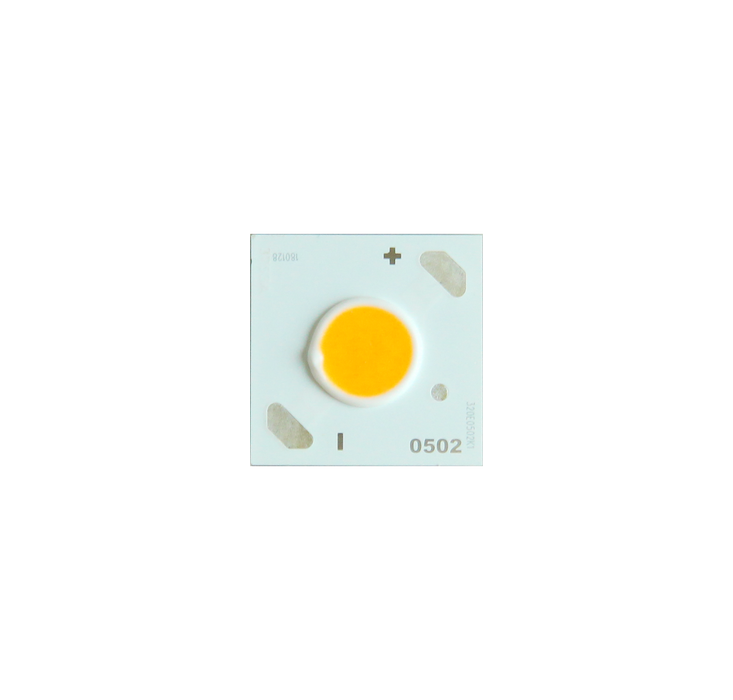

YUJILEDS® CRI 95+ 5mm 9W COB LED 2700K 3200K 4000K - HD5 - 10pcs

FEATURES

• CRI 95+ light quality
• 9W nominal power consumption
• Smaller light emission surface (Ф5mm)
• Excellent heat-dissipating capacity
• 13.5mm×13.5mmx1.0mm chip-on-board LED
• 120° emission angle
• RoHS compliant

• OVERVIEW

• SPECIFICATIONS

• ACCESSORIES

• INSTALLATION

• APPLICATIONS

• YUJILEDS® BC HD5 COB provides high light output density on a φ5mm emitting surface. Providing 95 CRI (min), this point-source LED can be used in a variety of applications demanding high color quality and performance.

• Power	9W
  Dimensions	13.5mm*13.5mm*1.0mm
  CCT	2700K	3200k	4000K
  Luminous Flux	640lm	700lm	740lm
  CRI (Ra)	95+
  SDCM	≤ 3 steps
  Viewing Angle	120°
  Forward Current	600mA
  Forward Voltage	14V - 17V
  Packaging	10pcs
  Warranty	3 years

  Spec Sheet

• Heat Sink

  Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?

• NOTICE: LEDs are current-sensitive devices and overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.

• -Spotlights

  -Tracking lights

  -Machinery lighting

  -Scanner lighting

  -Down lighting

  -Recessed lighting
