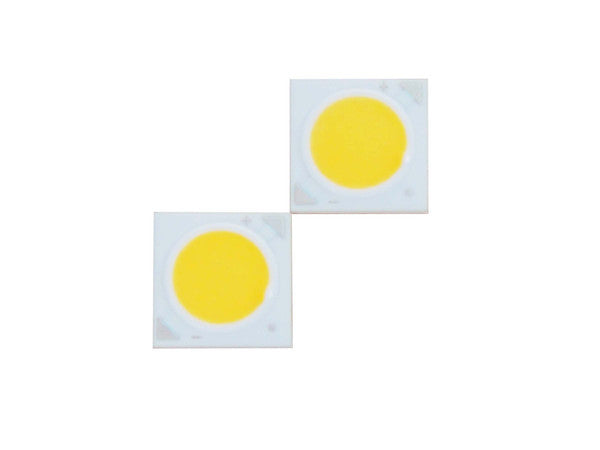

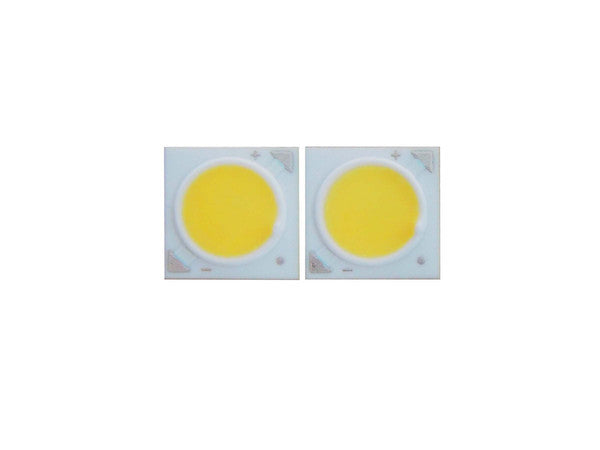

YUJILEDS® CRI 95+ 5W COB LED 3200K 5600K - 135XL - 10pcs

FEATURES

• CRI 95+light quality
• 5W nominal power consumption
• 13.5mm×13.5mmx1.0mm chip-on-board LED
• 120° emission angle
• RoHS compliant

• OVERVIEW

• SPECIFICATIONS

• ACCESSORIES

• INSTALLATION

• APPLICATIONS

• YUJILEDS® 135XL series high CRI COB provides high CRI, high luminous flux in a compact 13.5 mm square footprint solution. Providing 95 CRI (minimum ) up to 97, this mid-power LED can be used in a variety of applications demanding high color quality and light output.

• Power	5W
  Dimensions	13.5mm*13.5mm*1.0mm
  CCT	3200K	5600K
  Luminous Flux	390lm - 450lm	440lm - 510lm
  CRI (Ra)	95+
  SDCM	≤ 3 steps
  Viewing Angle	120°
  Forward Current	300mA
  Forward Voltage	14V - 17V
  Packaging	10pcs
  Warranty	3 years

  Spec Shet
  Photometric Report

• Power Supply	Constant current DC power supply capable of providing up to 350 mA in the 14 - 16 V range.
  Heat Sink	Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?

• NOTICE: LEDs are current-sensitive devices and overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.

• -Spot lights

  -Track lights

  -Machinery lighting

  -Scanner lighting
