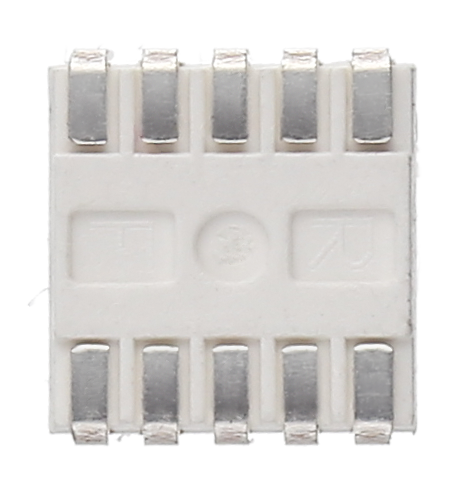

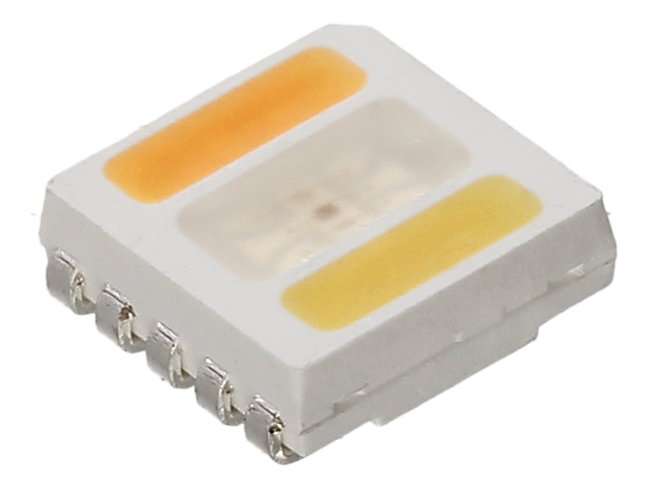

YUJILEDS® CRI 95+ 5-in-1 RGBWW LED SMD - 5050L - 1000pcs/Reel

SKU YJ-BC-RGBWW-5050L-G03-2765
Sale Sale
Original price $560.00
Original price $560.00 - Original price $560.00
Original price $560.00
Current price $504.00
$504.00 - $504.00
Current price $504.00
FEATURES
  • Industrial highest CRI performance of white light
  • Full-color gamut of red, green and blue
  • 5.4mm × 5.0mm package
  • TLCI & TM-30 specified (white light)
  • Simple Binning solution (white light)
  • OVERVIEW
  • SPECIFICATIONS
  • APPLICATIONS
  • Yujileds® Multichromatic series RGBWW 5050L LED is an innovative low-power LED. It integrates five different color channels in a compact package. With Yujileds® advanced phosphors technology, the white light channels achieve industrial highest CRI performance and consistency, and the color channels reach saturated and stable monochromatic.

    The compact package and high output make the LED suitable for a wide variety of applications demanding higher color quality and homogeneous lighting distribution, and it also simplify the optical design.

  • Part Number P3180001.26

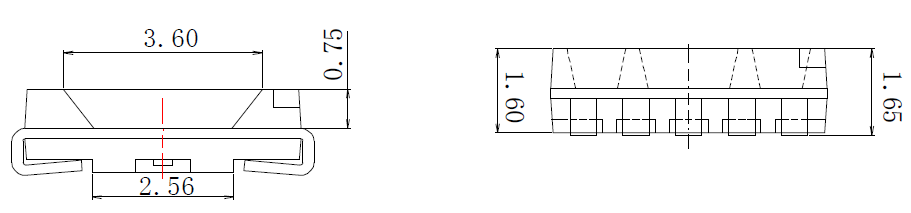

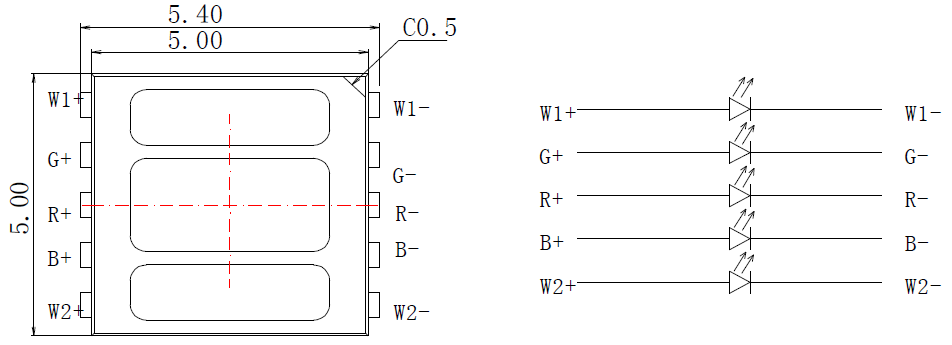

    Dimensions 5.4mm*5.0mm
    Luminous Color Red Green Blue
    Dominant Wavelength 619nm-624nm 518nm-523nm 465nm-470nm
    Forward Voltage 1.95V-2.4V 2.9V-3.3V 3.0V-3.4V
    Forward Current 20mA 20mA 20mA
    CCT (White) 2700K 6500K
    CRI (Ra) 95+ 95+
    Rf 92 92
    Rg 100 100
    TLCI 2012 97 97
    Forward Voltage 2.7V-3.2V 2.7V-3.2V
    Forward Current 30mA 30mA
    Luminous Flux 8lm-13lm 9lm-13lm
    Viewing Angle 120°
    Packaging 1000pcs/reel
    Warranty 3 years
    Spec Sheet
    • High-end architectural lighting
    • Photographic/broadcast lighting
    • Photoelectric devices and relevant research
