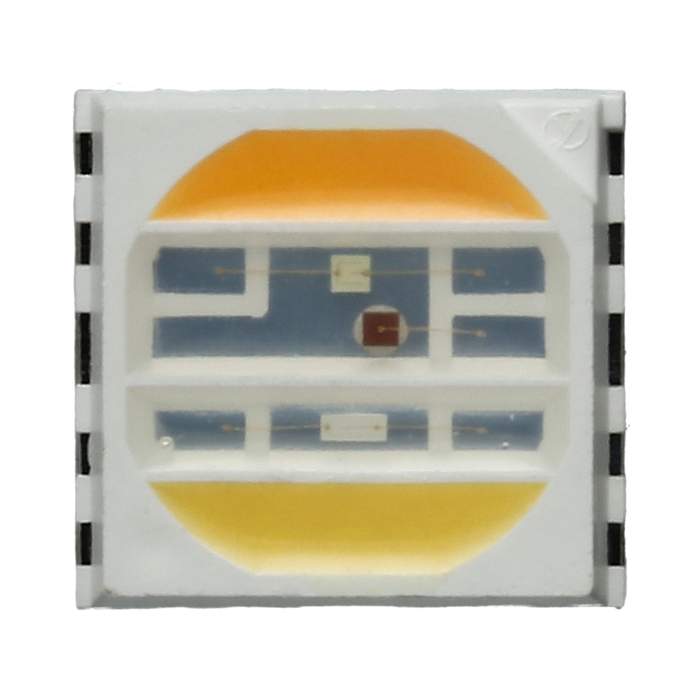

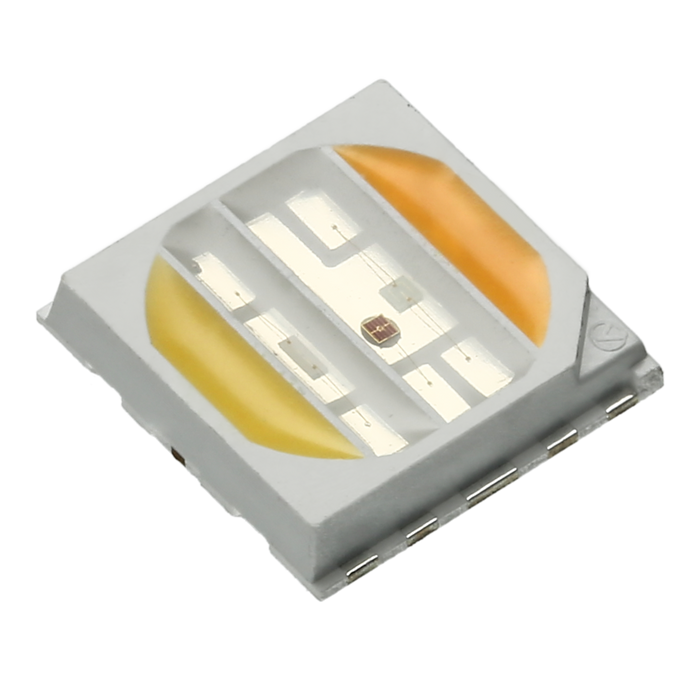

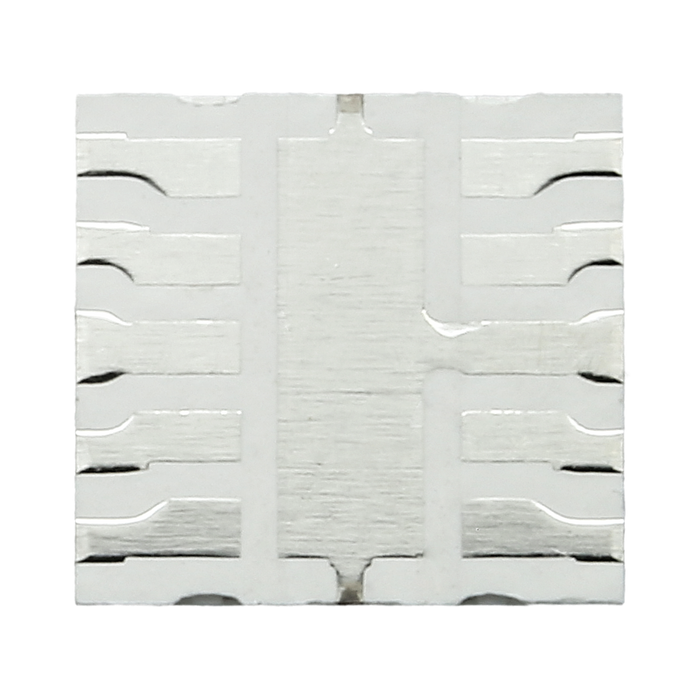

YUJILEDS® CRI 95+ 5-in-1 RGBWW LED SMD - 7070M - 3000pcs/Reel

FEATURES

• Industrial highest CRI performance of white light
• Full-color gamut of red, green and blue
• 6.9mm × 6.9mm package
• TLCI & TM-30 specified (white light)
• Simple Binning solution (white light)

• OVERVIEW

• SPECIFICATIONS

• APPLICATIONS

• Yujileds ® Multichromatic series 7070M LED is an innovative mid-power LED. It integrates five different color channels in a compact package. With Yujileds ® advanced phosphors technology, the white light channels achieve industrial highest CRI performance and consistency, and the color channels reach saturated and stable monochromatic.

  The compact package and high output make the LED suitable for a wide variety of applications demanding higher color quality and homogeneous lighting distribution, and it also simplify the optical design.

  Notification:

  The Yujileds® 7070M LED is designed in a specific structure hence it demands specific SMT materials and reflow processes, we kindly remind you to pay extra attention to the part Solder and reflow instruction (Spec Sheet Page 20 – 22) before the use.

• Part Number	P3190003.26
  Dimensions	6.9mm × 6.9mm
  Luminous Color	Red	Green		Blue
  Dominant Wavelength	619nm-625nm	520nm-525nm		457.5-460nm
  Forward Voltage	1.9-2.5V	2.8-3.4V		3.0-3.4V
  Forward Current	150mA	150mA		150mA
  Luminous Flux	24-28lm	42-50lm		9-12lm
  CCT (White)	2700K		6500K
  CRI (Ra)	95+		95+
  Rf	94		94
  Rg	101		101
  TLCI 2012	97		97
  Forward Voltage	3.0-3.4V		3.0-3.4V
  Forward Current	150mA		150mA
  Luminous Flux	41-46lm		51-56lm
  Viewing Angle	120°
  Packaging	3000pcs/reel
  Warranty	3 years

  Spec Sheet
• • High-end architectural lighting
  • Photographic/broadcast lighting
  • Photoelectric devices and relevant research
