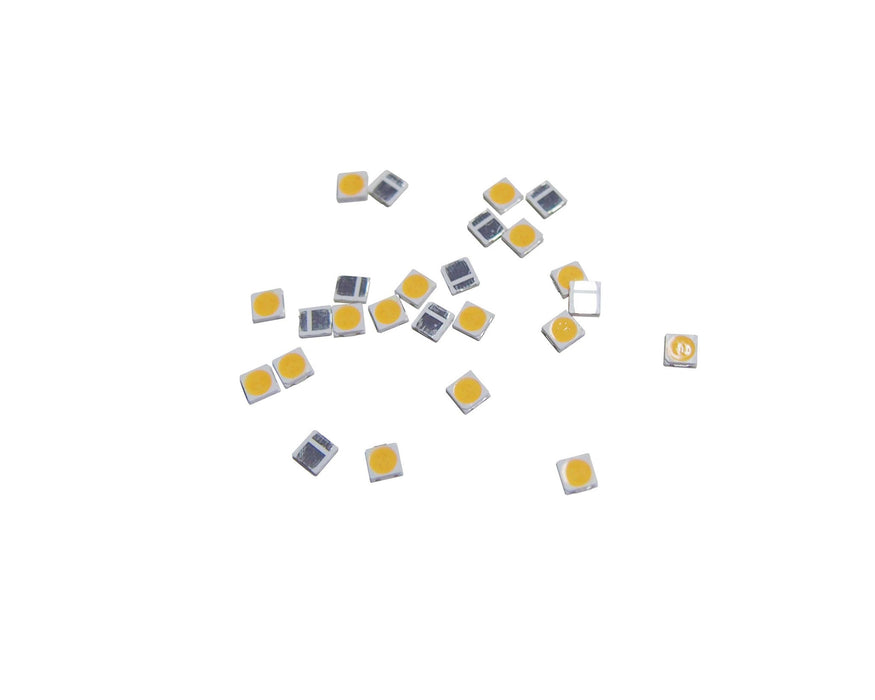

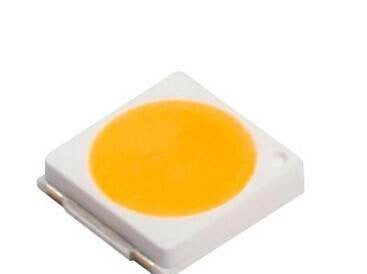

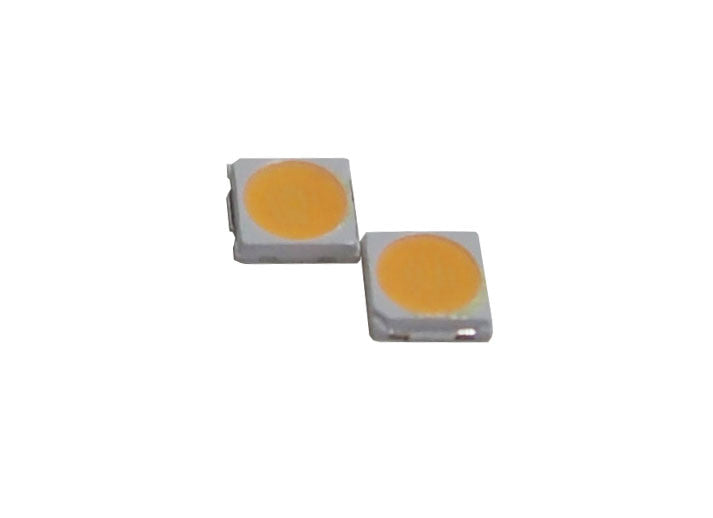

YUJILEDS® CRI 95+ 0.9W High Efficacy LED SMD - 3030 G04 - 5000pcs/Reel

FEATURES

• CRI 95+ light quality
• 0.9W nominal power, up to 115lm output
• High luminous efficacy up to 131lm/W
• 3.0mm×3.0mm universal package
• SimpleBinning solution
• TLCI & TM-30 specified

• OVERVIEW

• SPECIFICATIONS

• APPLICATIONS

• YUJILEDS® BC series 3030 G04 LED is a higher efficacy version of the previous YUJIELDS 3030 G03 LED. Adopting Yuji advanced phosphors for specifically designed spectral recipes, this new LED provides up to 131lm/W efficacy while having industrial highest CRI performance. It can be used in a variety of applications demanding high color quality and homogeneous lighting distribution.

• Part Number	P3200017.00
  Power	0.9W
  Dimensions	3.0mm*3.0mm
  CCT & Luminous Flux	2700K	95lm
  	3200K	105lm
  	4000K	110lm
  	5000K	115lm
  	5600K	115lm
  	6500K	115lm
  CRI (Ra)	95+
  Rf	92
  Rg	100
  TLCI	97
  Viewing Angle	120°
  Forward Voltage	2.8V – 3.2V
  Forward Current	300mA

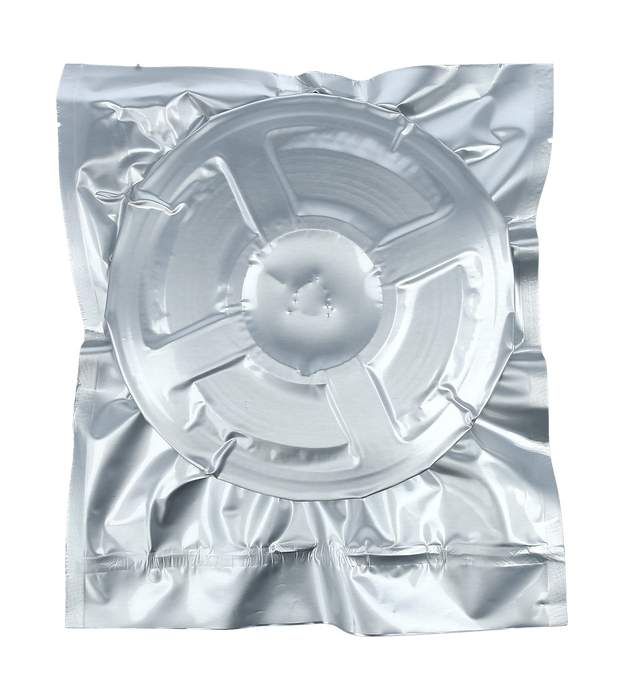

  Packaging	5000pcs/reel
  Estimated Lifetime	>54000 hours (IES LM80)
  Warranty	3 years



  Spec Sheet
  Photometric Report
• • High-end architectural lighting
  • Photographic/broadcast lighting
  • Human-centric lighting
  • Photoelectric devices and relevant research
