YUJILEDS® CRI 95+ High Power 1500W Flip Chip COB LED 3200K 5600K - 480H

FEATURES

• CRI 95+light quality
• Rated 1500W; Max 1600W power consumption
• Ф48.5 mm LES (light-emitting surface)
• Up to 120,000lm output utilizing flip-chip technology
• 120° emission angle
• TLCI & TM-30 specified
• Excellent color accuracy & consistency, SDCM ≤ 3 steps

• OVERVIEW

• SPECIFICATIONS

• ACCESSORIES

• INSTALLATION

• APPLICATIONS

• YUJILEDS® CRI 95 480H COB LED aims to provide the industrial highest color rendition performance and super-compact layout simultaneously. With flip-chip technology, the 480H LED achieves 1500W within the Ф48.5 mm LES (Light-Emitting Surface) which is the ideal solution for the applications requiring high power density. It can be widely used in professional stage lighting, photography lighting, cinematography lighting or photoelectric device and relevant research.

• Part Number	P3220002.56
  Power	Rated 1500W Max 1600W power consumption

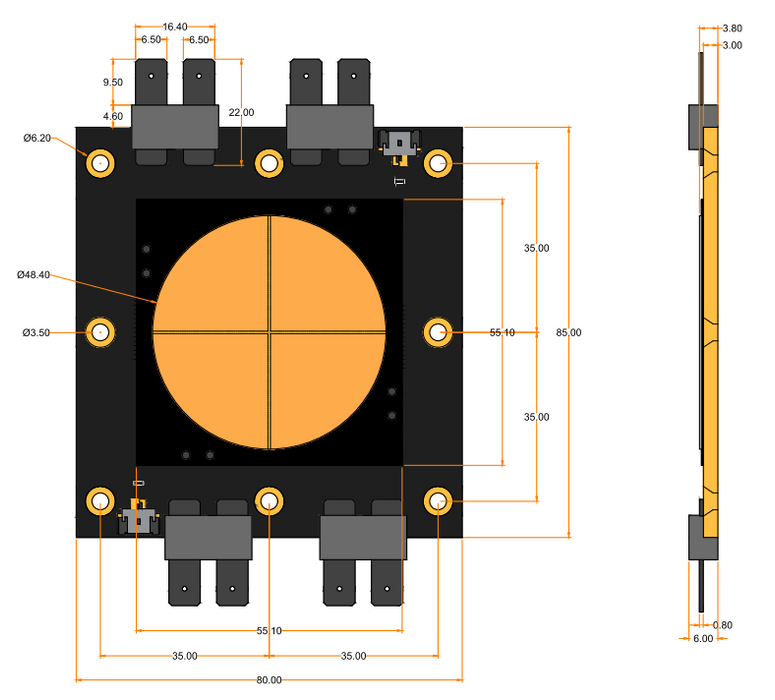

  Dimensions	Ф48.5 mm
  CCT	5600K
  Luminous Flux	120,000lm
  CRI (Ra)	95+
  SDCM	≤3 steps
  Viewing Angle	120°
  Forward Current	24A
  Forward Voltage	54V
  Packaging	1pc
  Warranty	3 years

  Spec Sheet

• Power Supply	Sorenson DCS40-30 and Sorenson DCS40-75
  Heat Sink	Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?
  Thermal Grease	This COB has super high-power density it requires sufficient thermal management. We suggest using thermal grease with high thermal conductivity. We recommend ShinEtsu-X23-7762.

• CAUTION: YJ-BC-480H is a super high power COB with integrated LED chip package. The light source is designed as six channels, and each channel has the maximum withstand current(8A), which requires multiple constant current drive power supplies. If the power supply doesn't match, the lamp will not work and may cause damage. Please make sure you have chosen the compatible driver and heat sink.

• -Photography lighting

  -Studio lighting

  -Solar Simulator Lighting

  -Projector Lighting

  -Spot lights

  -Track lights

  -Machinery lighting

  -Scanner lighting
