FEATURES
- CRI 95+light quality
- 1500W super power COB
- Ф72mm LES (light-emitting surface)
- Up to 120,000lm output utilizing flip-chip technology
- 120° emission angle
- TLCI & TM-30 specified
- Excellent color accuracy & consistency, SDCM ≤ 3 steps
-
OVERVIEW
-
SPECIFICATIONS
-
ACCESSORIES
-
INSTALLATION
-
APPLICATIONS
-

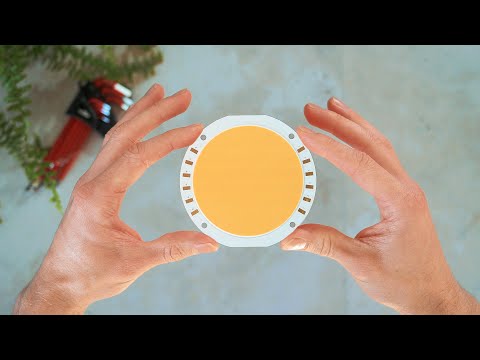

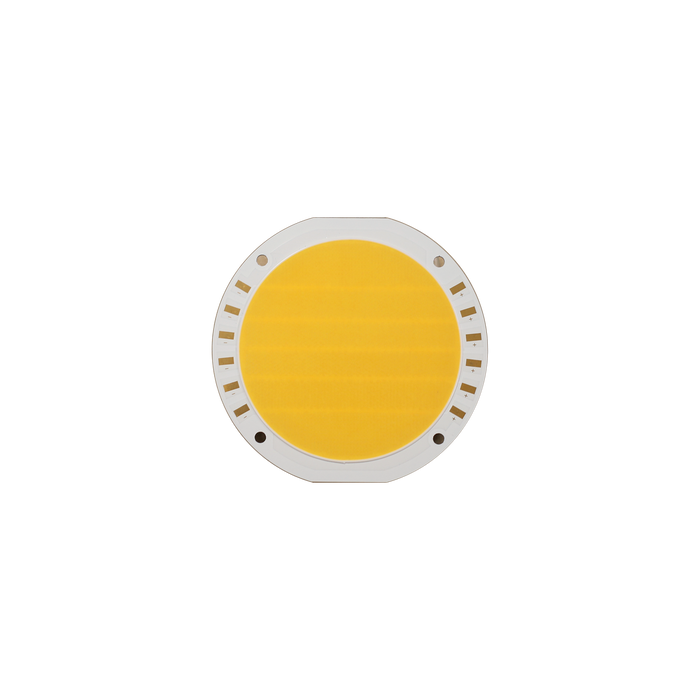

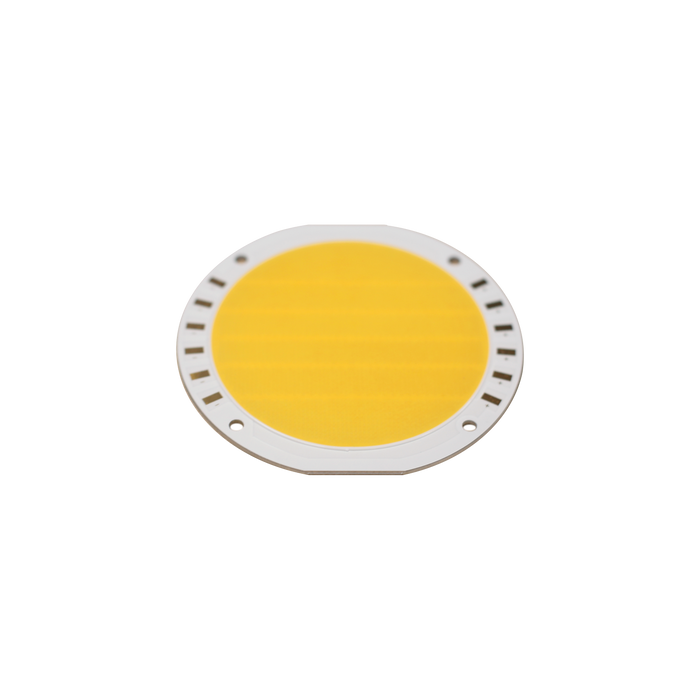

YUJILEDS® CRI 95 900H COB LED aims to provide the industrial highest color rendition performance and super-compact layout simultaneously. With flip-chip technology, the 900H LED achieves 1500W within the Ф72 mm LES (Light-Emitting Surface) which is the ideal solution for the applications requiring high power density. It can be widely used in professional stage lighting, photography lighting, cinematography lighting or photoelectric device and relevant research.
-
Part Number P3190007.00 Power 1500W Dimensions Ф72mm CCT 5600K Luminous Flux 120,000lm CRI (Ra) 95+ SDCM ≤3 steps Viewing Angle 120° Forward Current 48A Forward Voltage 30V - 41V Packaging 1pcs Warranty 3 years -
Power Supply
Heat Sink
Please refer to our blog post telling you how to choose an appropriate heat sink for your COB: How to select a good cooler for your LED COB?
Thermal Grease
This COB has super high-power density it requires sufficient thermal management. We suggest using thermal grease with high thermal conductivity.
We recommend ShinEtsu-X23-7762.
- CAUTION: YJ-BC-900H-G01 is a super high power COB with integrated LED chip package. The light source is designed as six channels, and each channel has the maximum withstand current(8A), which requires multiple constant current drive power supplies. If the power supply doesn't match, the lamp will not work and may cause damage. Please make sure you have chosen the compatible driver and heat sink.
-
-Photography lighting
-Studio lighting
-Solar Simulator Lighting
-Projector Lighting
-Spot lights
-Track lights
-Machinery lighting
-Scanner lighting
